Umbrella Engineering

Explore the anatomy, materials and customization options of our umbrella structures.

Design render of the 21-inch folding umbrella pulled apart along its shaft: the canopy on top, drawn as a see-through dashed outline, then the rib frame, the runner, the central shaft and the carabiner handle
Design render, the 21-inch folding umbrella taken apart; the numbers match the list

Umbrella Anatomy

  1. Ribs & Stretchers

    The skeletal frame. Made from flexible fiberglass, steel, or lightweight carbon fiber to resist wind inversion.

  2. Canopy

    High-density woven fabric forming the protective shield. Available in multiple technical grades including UV resistant and RPET.

  3. Center Shaft

    The structural core. Hexagonal or round tubes in aluminum or steel.

  4. Runner & Spring

    Precision sliding mechanism. Houses the catch spring for smooth deployment and secure locking in the open position.

  5. Handle

    Ergonomic interface. Options range from EVA foam to ABS plastic and natural wood.

  6. Tips & Ferrule

    Reinforced endpoints. Secures the canopy to the ribs and caps the top shaft, engineered to prevent fabric tearing under tension.

  7. Sleeve

    Tailored protective casing. Matches canopy material, designed for compact storage and enhanced presentation.

  8. Packaging

    Retail-ready or bulk transit solutions. Customized polybags, structured tubes, or branded gift boxes tailored to B2B requirements.

Material Options

Frame Engineering

Fiberglass
High Flexibility / Wind-Resistant
Steel
High Rigidity / Standard
Aluminum
Lightweight / Corrosion Resist
Carbon Fiber
Ultra-Light / Premium Strength

Canopy Substrates

Pongee
Matte Finish / Water Repellent
UV Coated
UV Protection / Silver or Black Backing
RPET (Recycled)
Sustainable
Nylon/Polyester
High Gloss / Entry Level

Customization Engineering

Design renders of the handles on our four models.

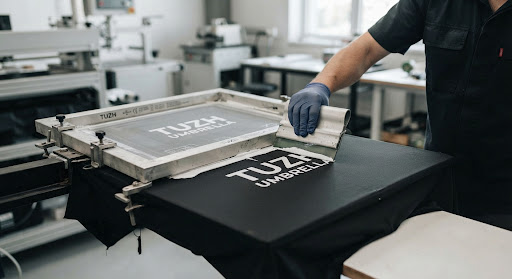

  • Precision Printing

    Silkscreen, heat transfer, DTF and direct digital printing for exact PMS matching and complex full-canopy graphics.

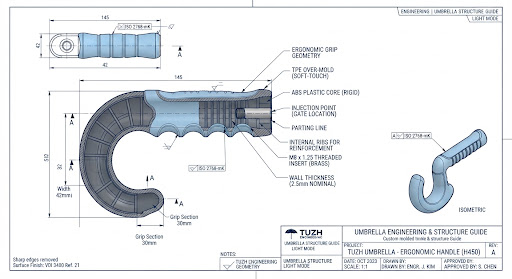

  • Custom Handles

    Custom handle shapes on request. Available finishes include rubberized matte, gloss UV, and soft-touch.

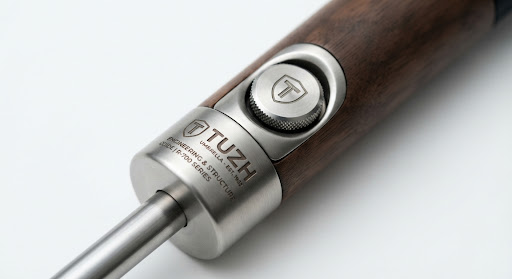

  • Hardware Finishing

    Laser engraving on runner buttons, custom dyed ferrules, and branded tie-band snaps for comprehensive brand integration.

Specification Matrix

ComponentOptionsTypical UseCustomization Notes
Frame Structure2-Fold, 3-Fold, Stick, GolfCompact to Maximum CoverageCustom lengths available upon request.
Opening MechanismManual, Auto-Open, Auto-Open/CloseBudget to Premium UXButton color matching available.
Rib Count6, 8, 10, 16, 24Standard to Ultra-DurableHigher counts increase weight & stability.
Canopy Size (Arc)36" to 68"Personal to Dual OccupancyVented canopies available for >54".

Ready to Engineer Your Next Project?

Consult with our technical team to specify the exact structural and material requirements for your bulk umbrella order.
